W1209 Temperature Controller DC 12V LED Display Red Digital Thermostat Module with Waterproof NTC Probe egg icubator in Pakistan

KEY FEATURES OF W1209 TEMPERATURE CONTROLLER MODULE:

• 3-digit display of temperature
• The module can operate in a heating or cooling mode of operation
• Multiple parameters can be set such as temp trip point, hysteresis and delay.
• Waterproof NTC temperature sensor has -30 to +110°C measurement range with  0.1°C accuracy
• Relay switches up to 120VAC @ 10A or 14VDC @ 10A
• 12V module operation

This module measures and displays the temperature and allows you to control power to most types of electrical equipment based on that temperature.  A single output relay can be turned ON or turned OFF as temperature rises or lowers past a thermal threshold that you set.  You can also set a temperature hysteresis, relay activation delay and thermal limits for the operation of the module.

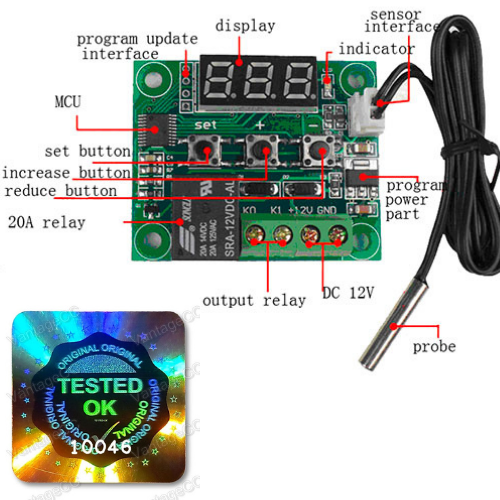

A built-in STM8S uC allows you to configure the module using the display and 3 pushbuttons.  All settings are saved into non-volatile memory and are preserved during a power cycle.

The temperature is sensed by a high accuracy waterproof NTC 10K Thermistor that has a range of -30°C to 110°C (-22°F to 230°F).  The sensor cable is about 18″ long, but it is possible to splice wire to lengthen the cable if needed.

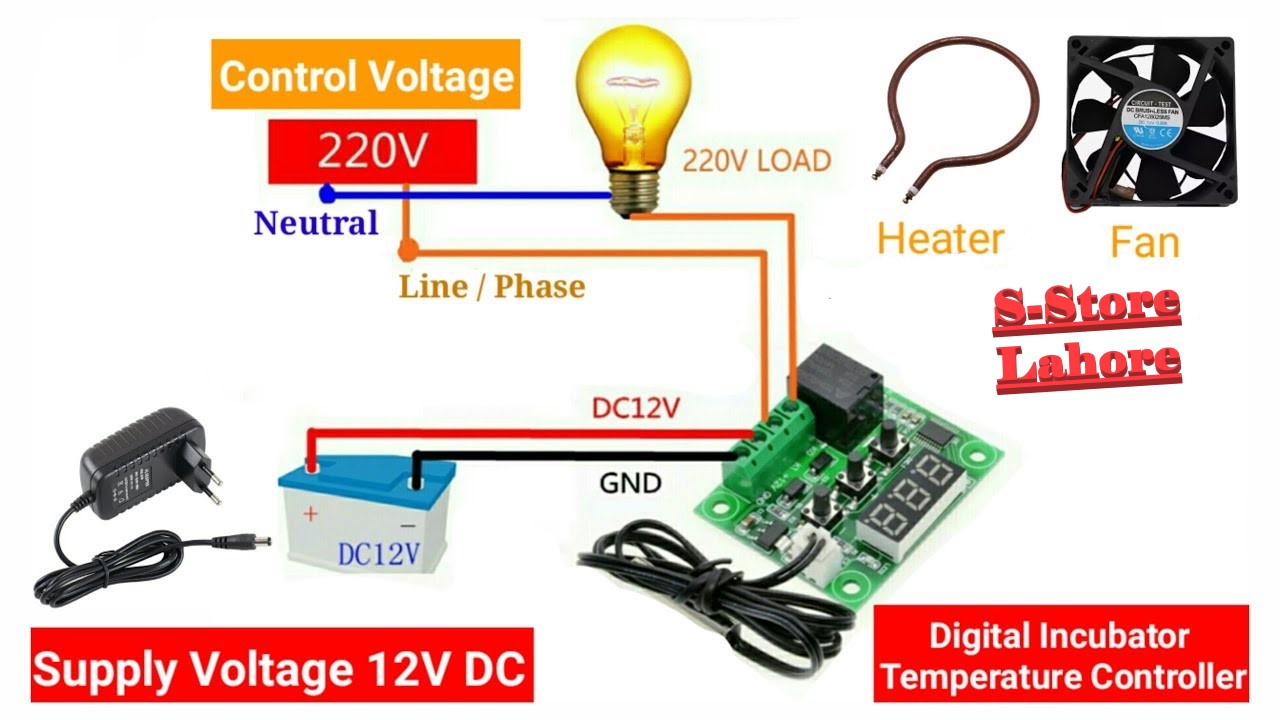

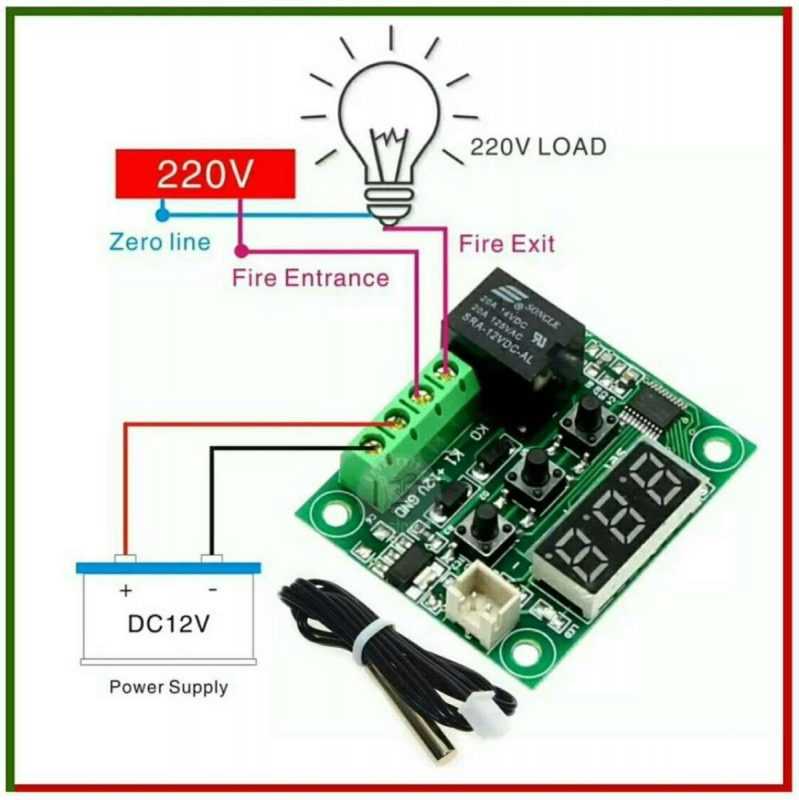

The relay is rated for up to 120VAC @ 10A and 14VDC @ 10A.  When the relay is energized a red LED is lit.    It is also possible to use the relay on this module to switch higher power relays if you want to control a lot of power.
