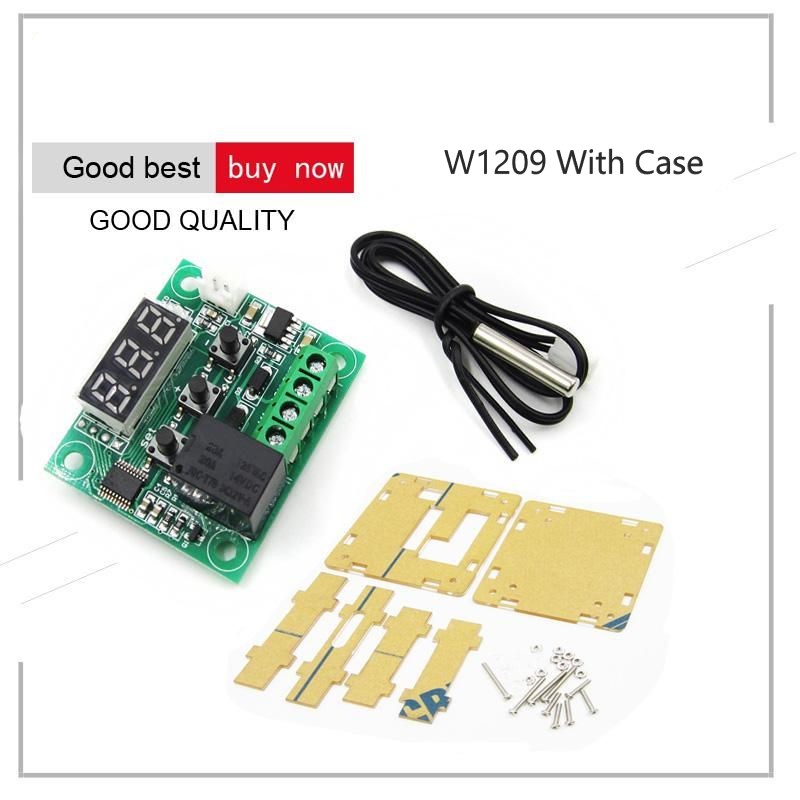

W1209 12V Digital Thermostat Temperature Thermo Controller Switch Module & Case in Pakistan
KHREED.PK
Rs. 0
In StockSKU:
Categories & Tags: Computers & Laptops, Computer Components, Imported, Pakistan, Discount, High Quality
Share:
Features:
- Number:Wi209 Theory:Temperature ControllerDisplay
- Type:DigitalMax Measuring Temperature:100°C
- 119°CDisplay Size:1.9 Inches & Under Usage:please check
- instractionSpecifications: Temperature range :-50-110
- Dimensions: 48.5 * 40mm
- Temperature control mode: ONI OFF
- Resolution: When temperature is 0.1°, the resolution is
- 9.9-999, other temperature segment is 1
- Control accuracy: 0.1°
- Hysteresis accuracy:0.1°
- Refresh rate: 0.5S
- High temperature protection: 0-110
- Supply voltage: DC 12V
Description:
Style:Embedded Model Number:W1209 Theory:Temperature Controller Display Type: DigitalMax Measuring Temperature:100°C 119°CDisplay Size:1.9 Inches & Under U sage:please check instructionSpecifications: Temperature range :-50-110 Dimensions: 48.5 * 40mm Temperature control mode: ON OFF Resolution:When temperature is 0.1°, the resolution is 9.9-99.9, other temperature segment is 1° Control accuracy: 0.1 Hysteresis acuracy: 0.1° Refresh rate: 0.55 High temperature protection: 0-1100 Supply voltage: DC 12V Static current: S 35MA, attract current 5 65MA Output voltage: DC 12V Output power: 20A relay Measurement input: NTC (10K 0.5%) Waterproof Sensor Environmental requirements: -10 -~60° Humidity 20%-85% How to use:Connect the power supply and the load. you can supply to the controller, Is displayed as a measured temperature, Press the SET button, the display flashes the temperature, Press-to set the desired temperature, After setting press SET to confirm return, The controller automatically performs the relay by setting off Lights, LED status dercriptions: Indicator: Off The relay is switched off. Always indicate the relay is closed. LED: Shows LL is the sensor open, showing ?HH is out of range. the thermostat will be forced to close the relay, the display-as high temperature protection. Package Included: 1x-50-110°C Digital thermostat Temperature Control Switth 12V + waterproof1x w1209 temperature control 1x sensor 1x w1209 casing 1x user manual
