Pack Of 4 Pcs Of 18650 Micro USB 5V 1A Charging Module Tp4056 Lithium Ion Battery Charger Lithium Polymer Battery Charger Module Power Bank Circuit Board Power Bank Charging Module With Battery Protection in Pakistan

Features:

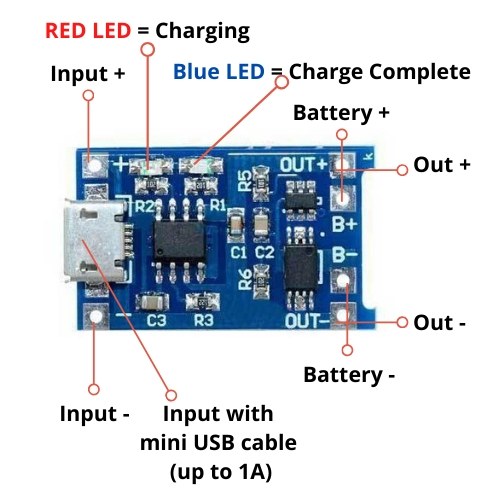

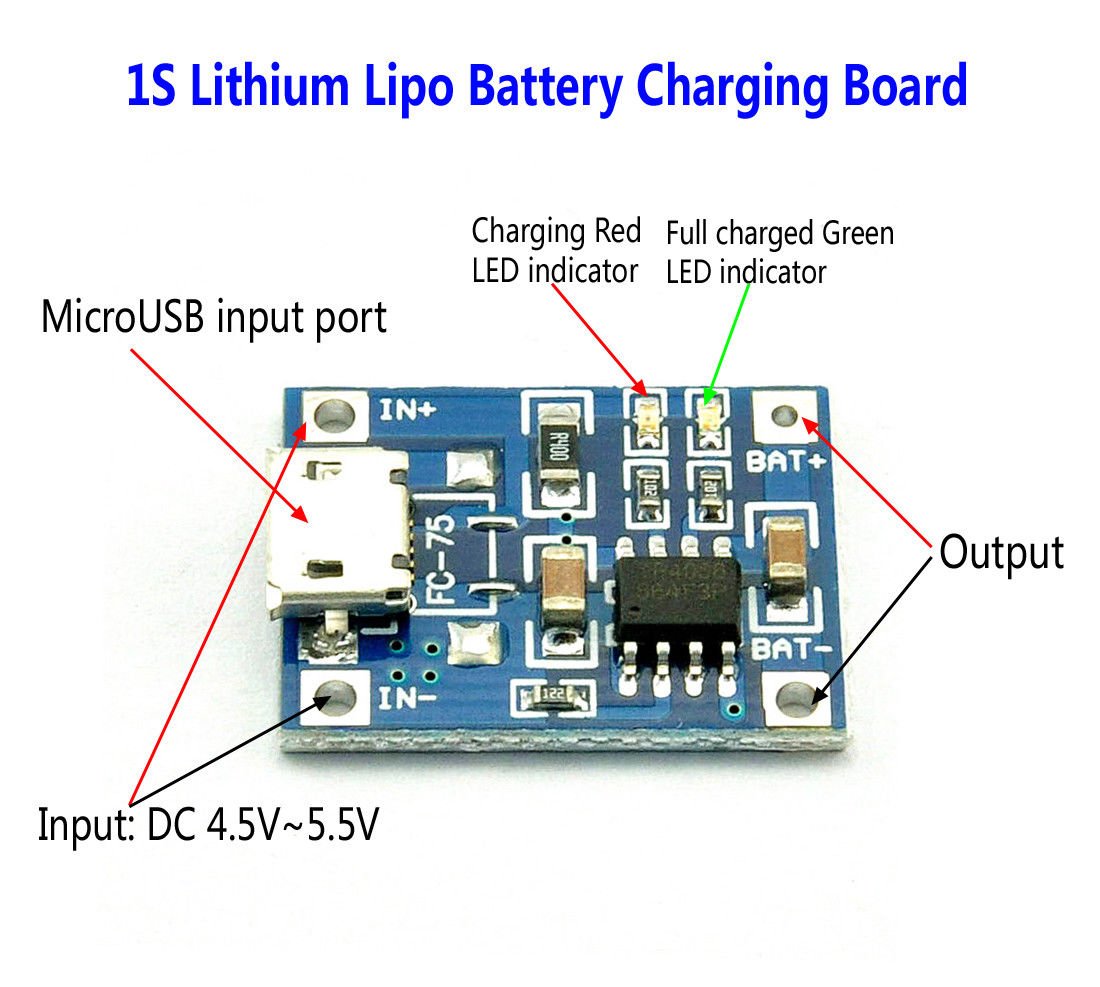

• Using the module:Connect micro USB cable for power, or 5V DC to pads marked IN+ and IN- on the left-hand side of the module
• Connect cell to charge to B+/B- pads on the right-hand side of the module.
• A load (something for the battery to power) can be connected to the OUT+/OUT- pads on the right-hand side
• Important! Disconnect load when charging
• The red LED indicates charging in progress, the green LED indicates charging has finished.
• Never charge your battery at a rate greater than 1C.
• 2. It is better thanthe charging current is 37% of the battery capacity. If you charge the battery of 1000mAh, acurrent of 400mAh is enough.
• 3. The connection wire should not be too thick.
• 4. Make sure the connect point is good.
• 5. If the input voltage is too high, like 5.2v, the current will be less than 1000mA, it is normal. It is a protection function, auto-subtract the charging current to avoid burn damage to thechip.
• 6. NO Reverse polarity.Features :Led indicator: red is charging Green is fully charged.
• Current Protection: Yes
• Inversed polarity: NO.
• Use mature charging chip TP4056 for simple peripheral circuits, good protection performance, and high charging accuracy.
• Fully machinery automated processing, all patch parts manufacturing.
