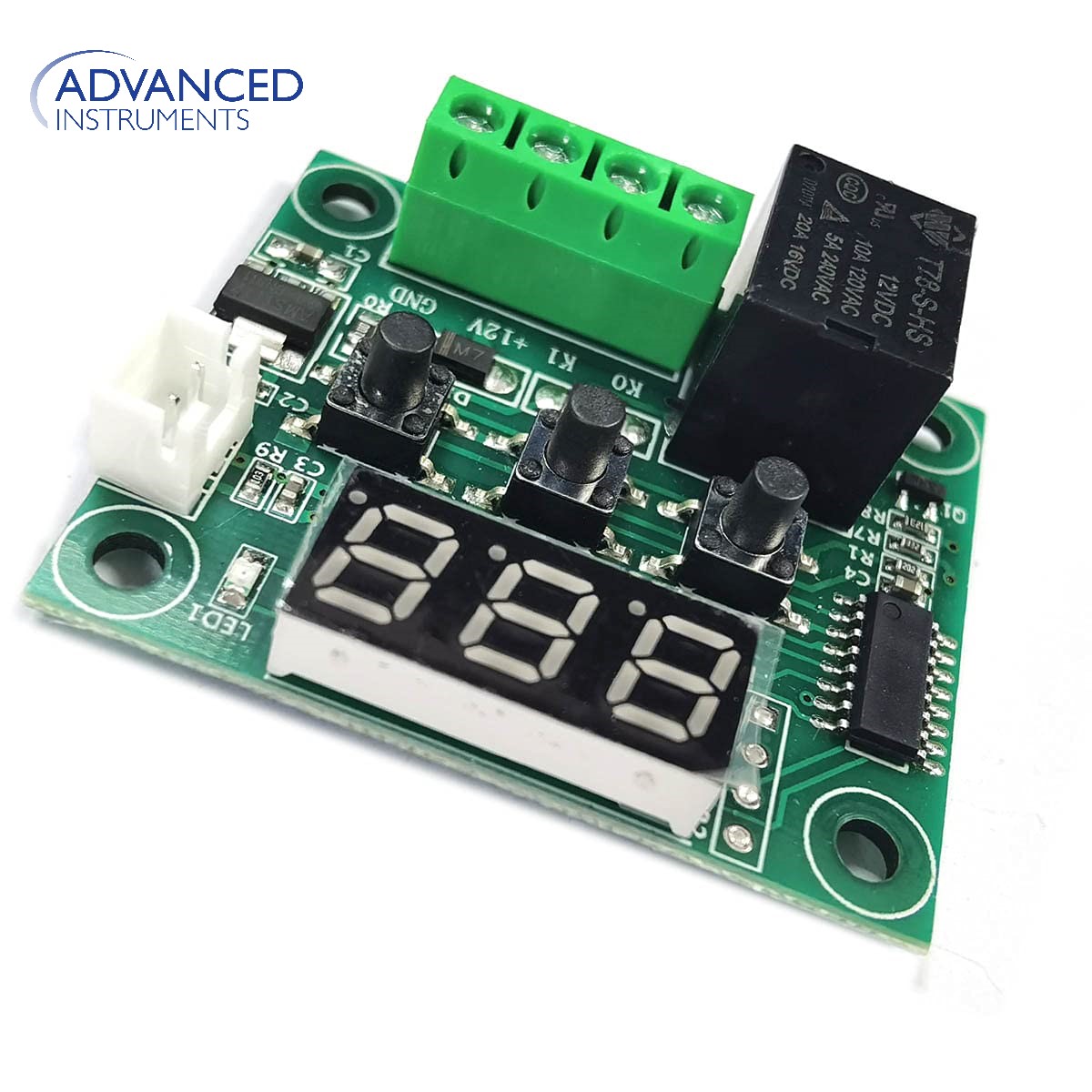

Digital Led Thermostat Temperature Control DC 12V Adapter Thermometer Thermo Controller Switch Module + NTC Sensor W1209 in Pakistan

KHREED.PK
( 0 Stars Rating )

Rs. 0

In Stock

Color Family


Quantity

Buy Now Add to Cart
  • Features

    • Temperature control mode: ON / OFF
    • Temperature range :-50-110
    • ResolutionWhen temperature is 0.1 the resolution is -9.9~99.9, other temperature segment is 1
    • Control accuracy: 0.1
    • Hysteresis accuracy: 0.1
    • Refresh rate: 0.5S
    • High temperature protection 0-110
    • Supply voltage: for DC 12V
    • Static current: ≤ 35MA, attract current ≤ 65MA
    • Output voltage: for DC 12V
    • Output power: 10A relay
    • Measurement input: NTC (10K 0.5%) Waterproof Sensor
    • Environmental requirements: -10 ~ 60 Humidity 20% -85%

SKU:

Categories & Tags: Computers & Laptops, Computer Components, Imported, Pakistan, Discount, High Quality

Share:

Features:

  • Temperature control mode: ON / OFF
  • Temperature range :-50-110
  • ResolutionWhen temperature is 0.1 the resolution is -9.9~99.9, other temperature segment is 1
  • Control accuracy: 0.1
  • Hysteresis accuracy: 0.1
  • Refresh rate: 0.5S
  • High temperature protection 0-110
  • Supply voltage: for DC 12V
  • Static current: ≤ 35MA, attract current ≤ 65MA
  • Output voltage: for DC 12V
  • Output power: 10A relay
  • Measurement input: NTC (10K 0.5%) Waterproof Sensor
  • Environmental requirements: -10 ~ 60 Humidity 20% -85%

Description:

100% Brand New Original w1209 hw557

Technical parameters：

Temperature control range: - 50 ~ 110 ℃

Resolution: - 0.1 ℃ at 9.9 ~ 99.9, 1 ℃ at other temperature sections

Temperature measurement accuracy: 0.1 ℃

Control accuracy: 0.1 ℃

Return error accuracy: 0.1 ℃

Refresh rate: 0.5 s

Input power supply: DC 12V

Measurement input: NTC (10K 0.5%) waterproof sensor

Output: 1-way relay output, capacity = 20a 125VAC, 20a 14vdc

Environmental requirements: - 10 ~ 60 ℃ humidity 20% - 85%

Specification and size: 48.5 * 40MM

Power consumption of the whole machine: static current: ≤ 10mA; pull in current: ≤ 65mA

Packing: 1Pc
