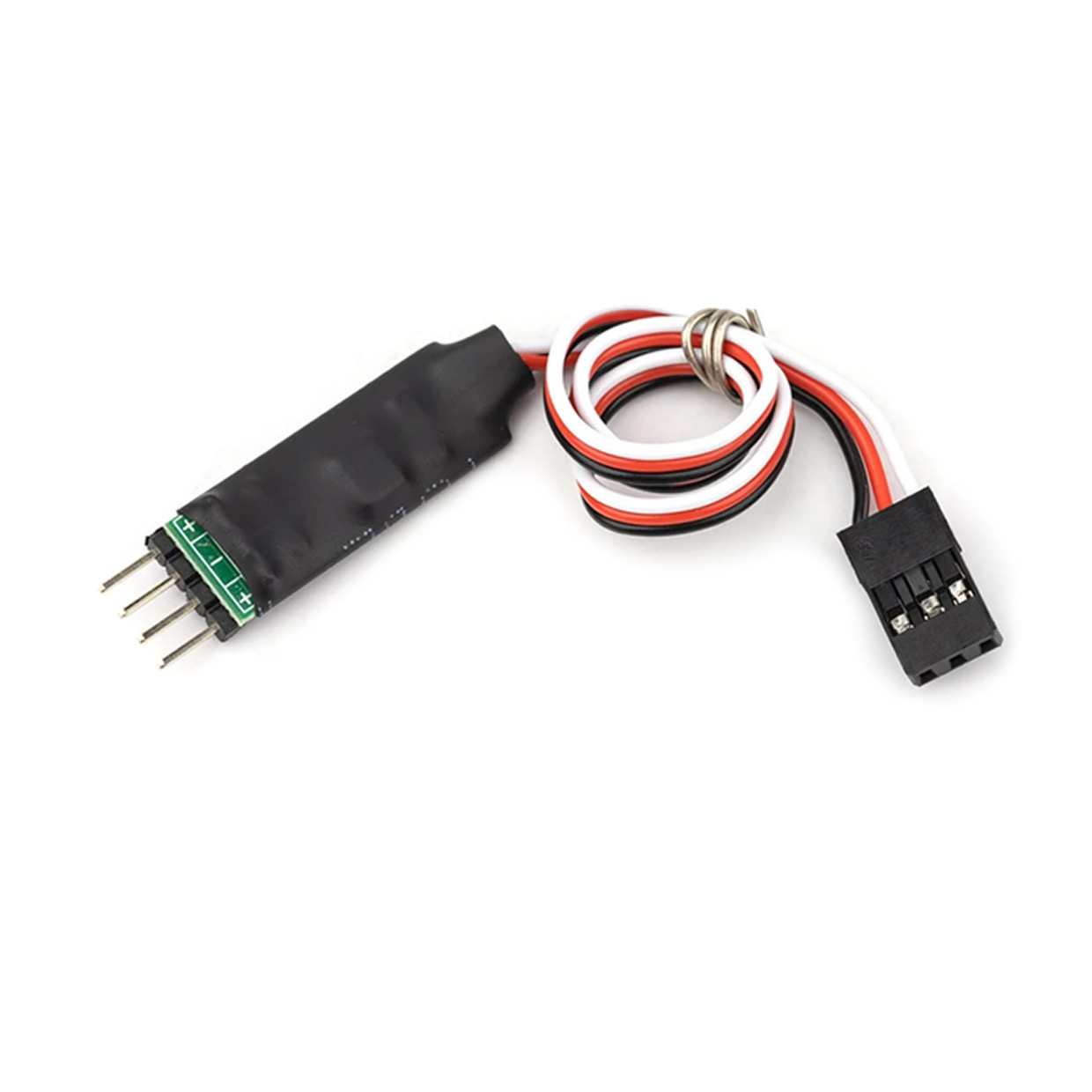

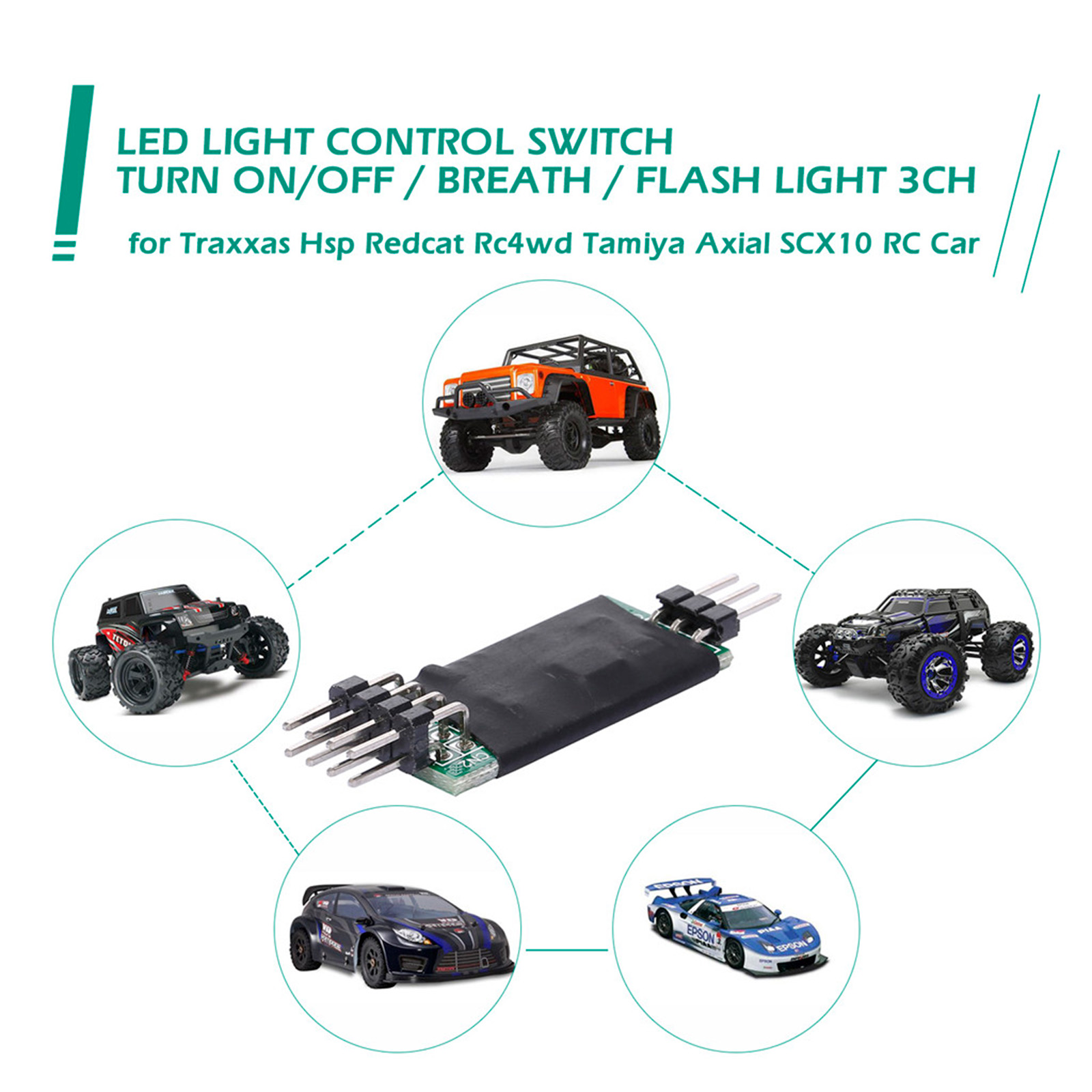

3CH LED Light Controller Switch Panel System On/Off for RC Car Airplane 1/10 1/8 RC Model Car HSP TAMIYA Axial SCX10 Trx4 in Pakistan

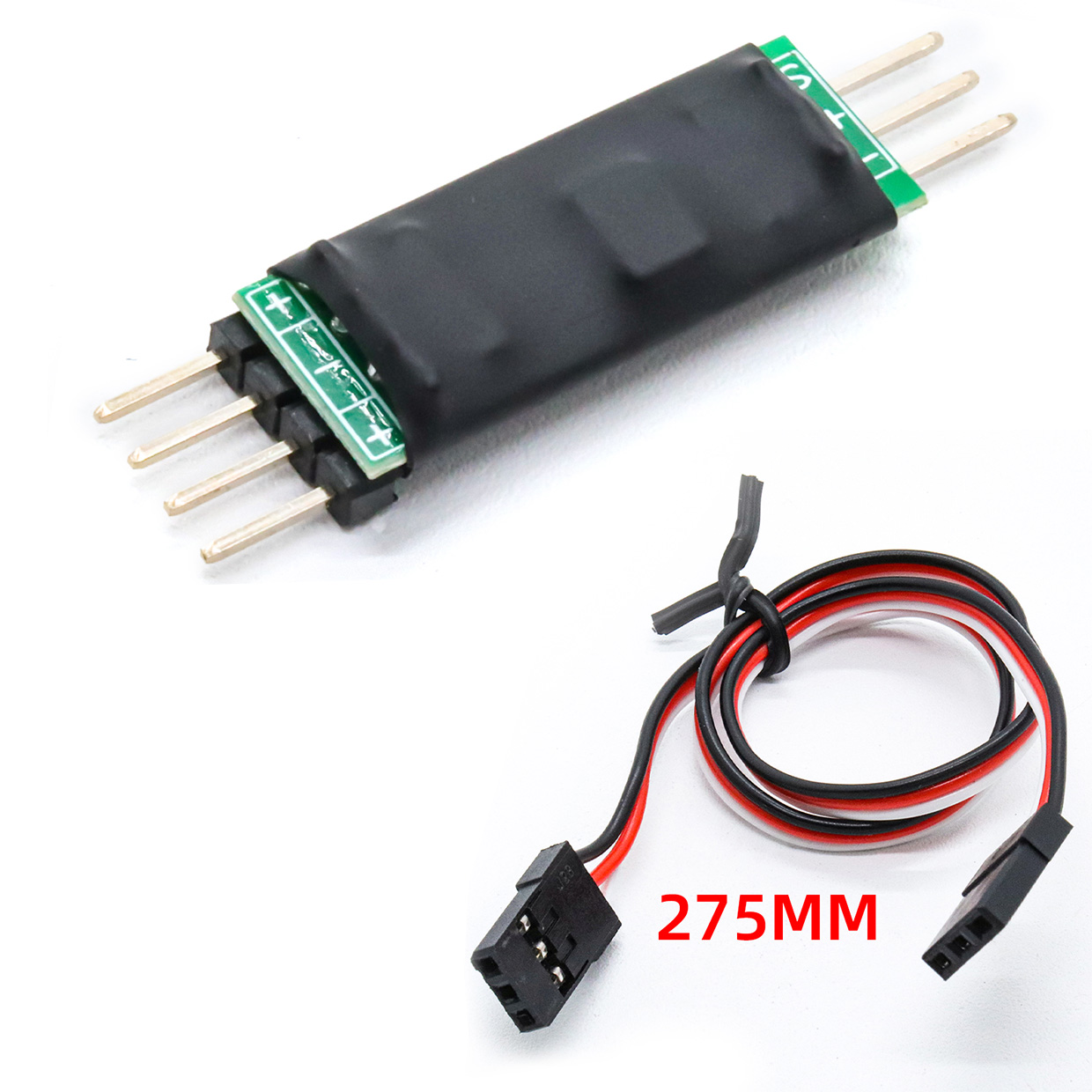

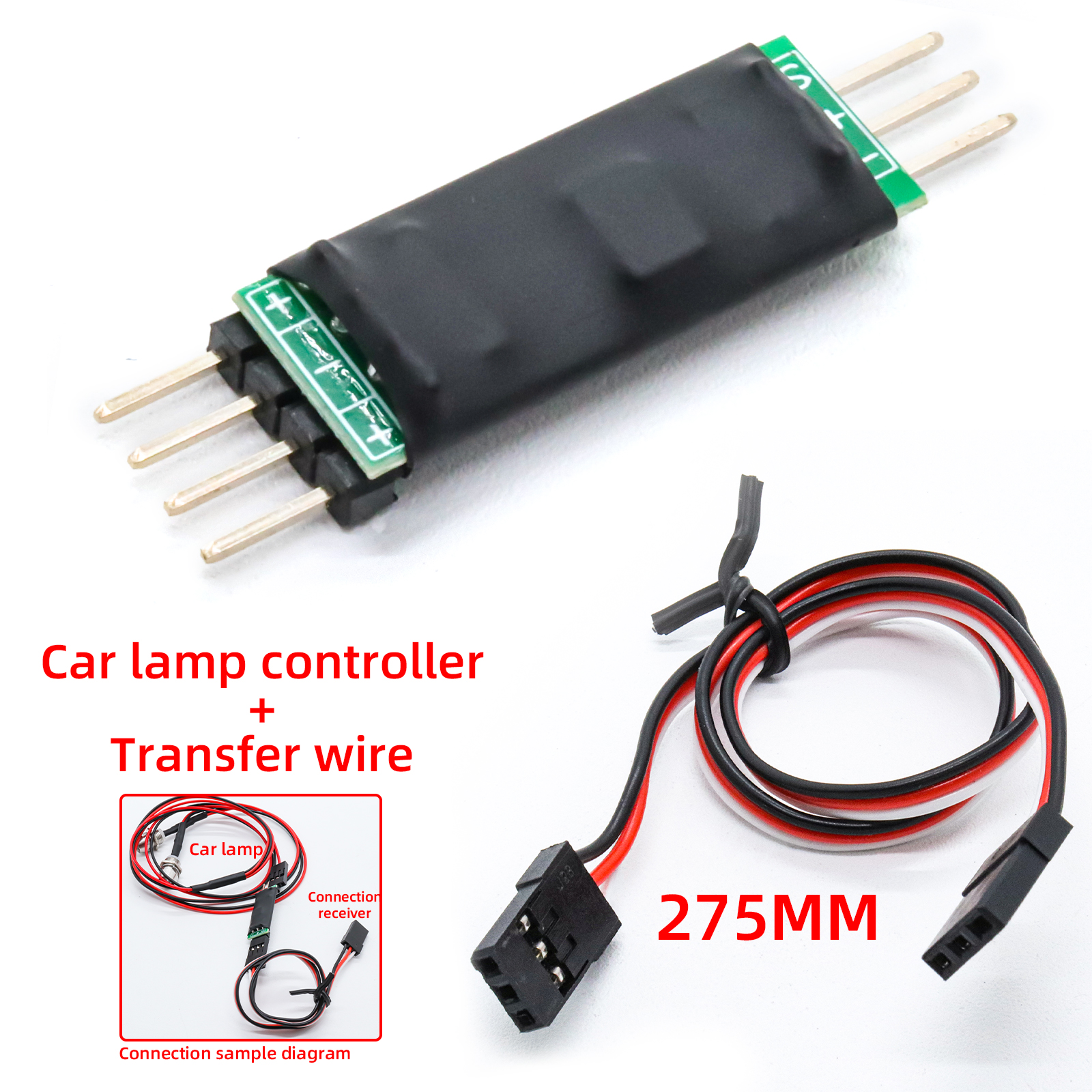

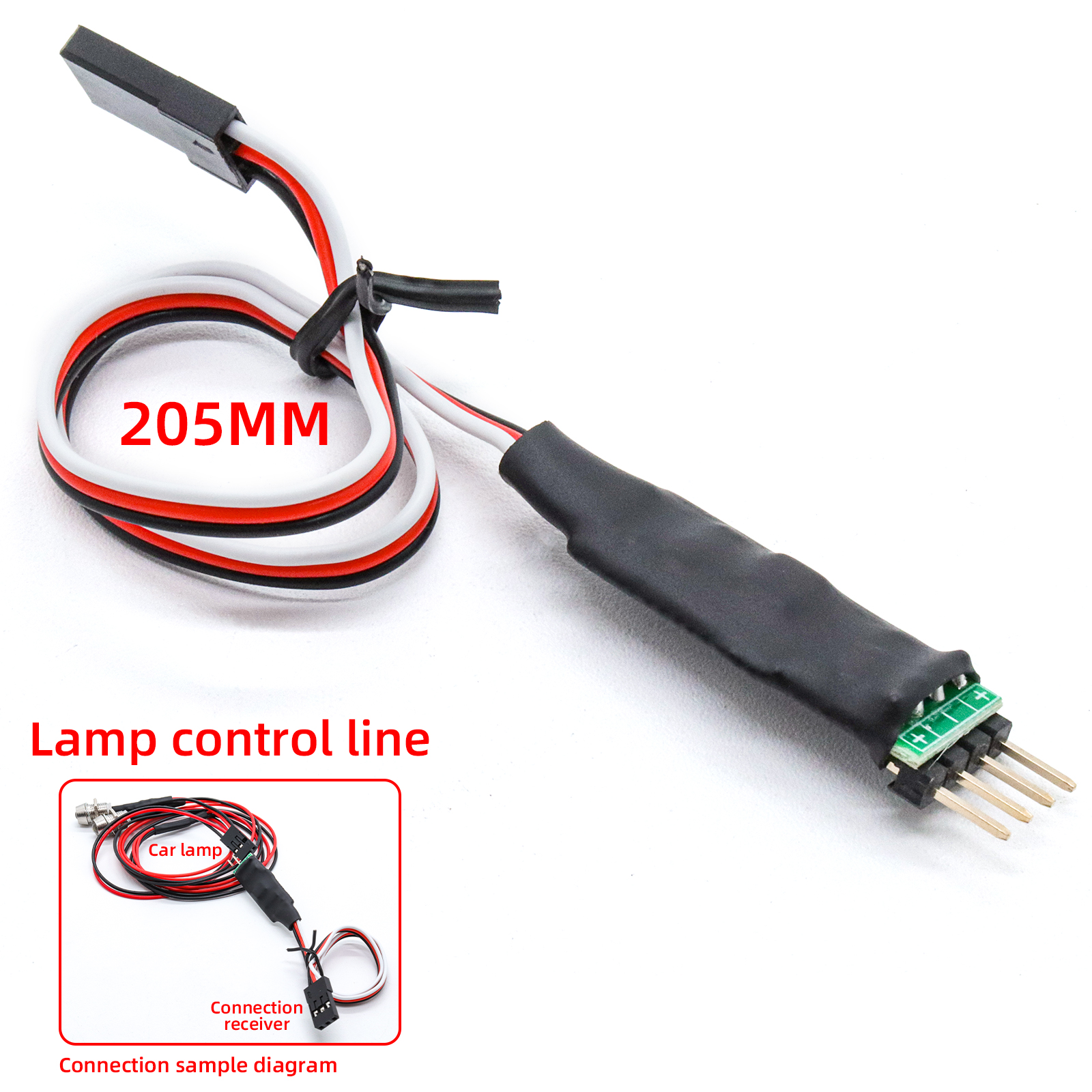

Type A /B lamp: Receiving power supply switch type

Received power supply: 6V Maximum supply current 1A

Output supply lamp sets: 2 sets of independent LED lamps 1 and 2 sets of lamps

Scenario A: 1 and 2 are not bright when power is first turned on

Scene B: Click the remote controller 1 to light up; 2 Not bright

Scene C, press the remote controller again. 1 is not bright and 2 is bright

Scene D, click the remote controller again. 1 lights up and 2 lights up

Scene 5 Click again: 1 and 2 Close, then press to enter Scene B and stay in turn

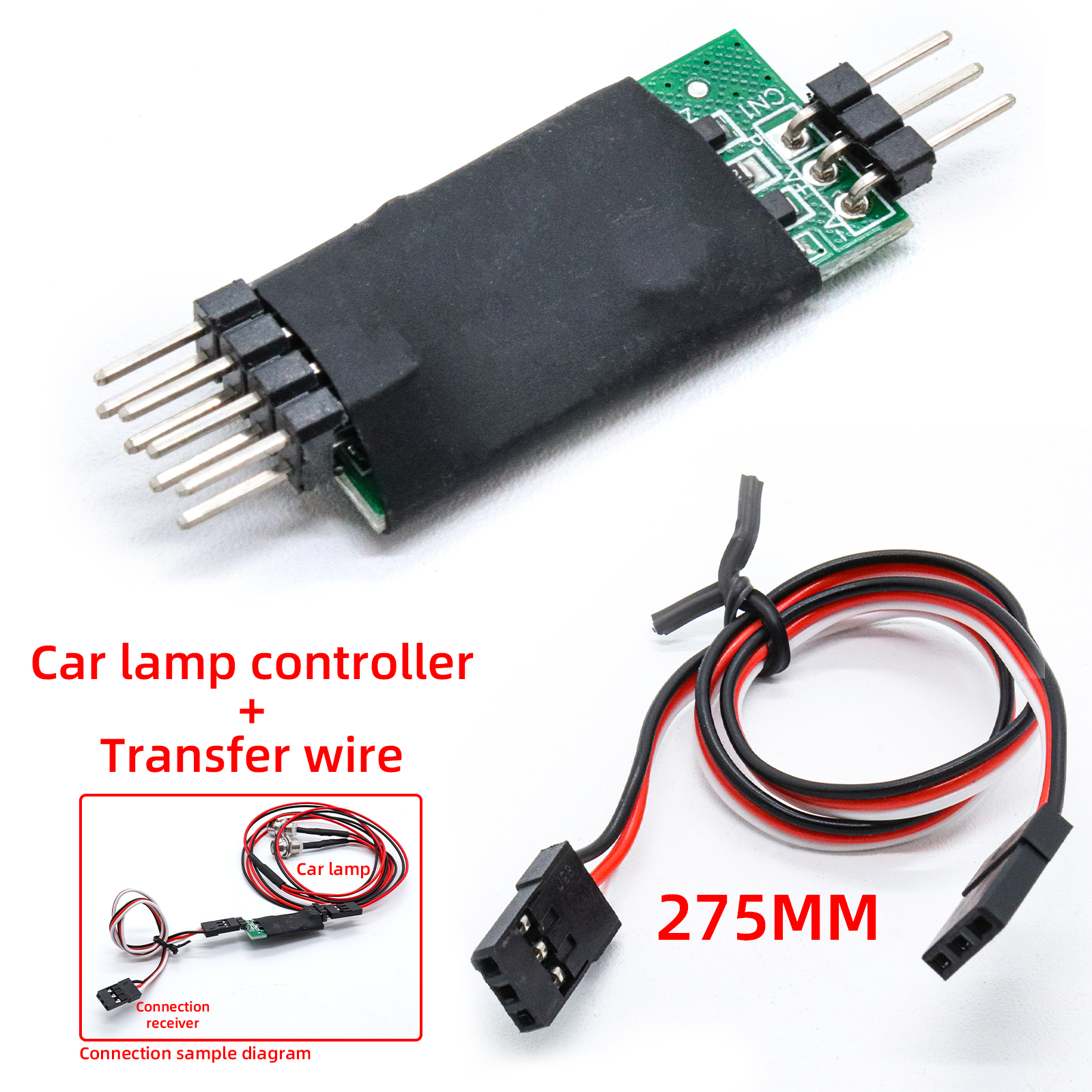

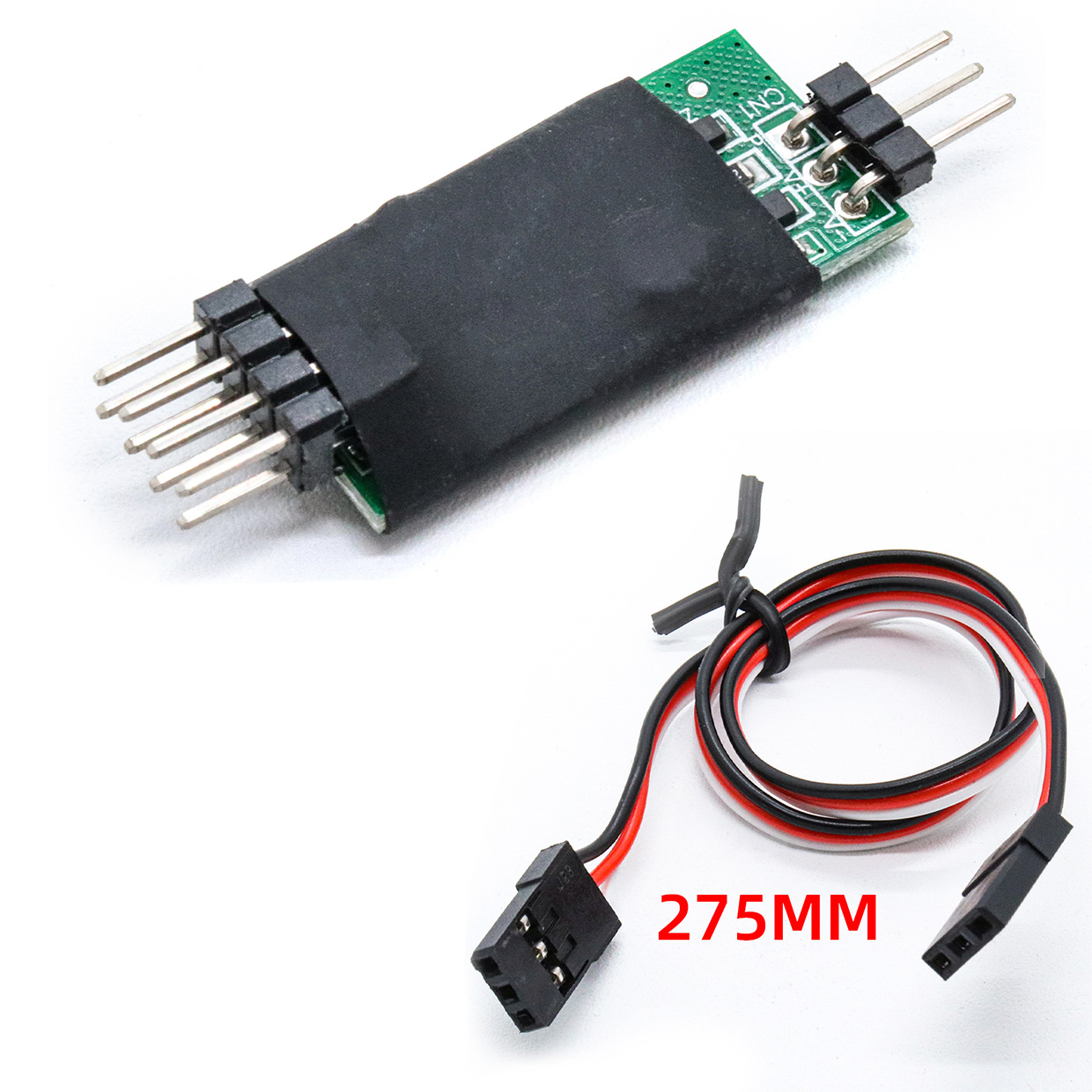

Type C lamp: receiving power supply function type

Power supply mode: Receiving power supply: 6V Maximum supply current 1A

Output supply lamp set: 4 sets of lamps 1234 1 and 2 are parallel relations 3 and 4 are parallel relations It can be understood that the output lamp group has four interfaces for two groups

Scene A: 1-2 is not bright when it is first powered on, and 3-4 is not bright

Scene B: Click the remote control 1 & 2 on 3 & 4 off

Scene C, press the remote control again. 1-2 is not bright. 3-4 is bright

Scene D, press the remote control again 1-2 on 3-4 on

Scene E: Press the remote controls 1 & 2 and 3 & 4 again to enter the breathing flash state

In scene F, press the remote controllers 1-2 and 3-4 again to enter the flash state

Scene G: Click 1 & B and 3 & 4 again. Close and then press Enter Scene B to stay in turn

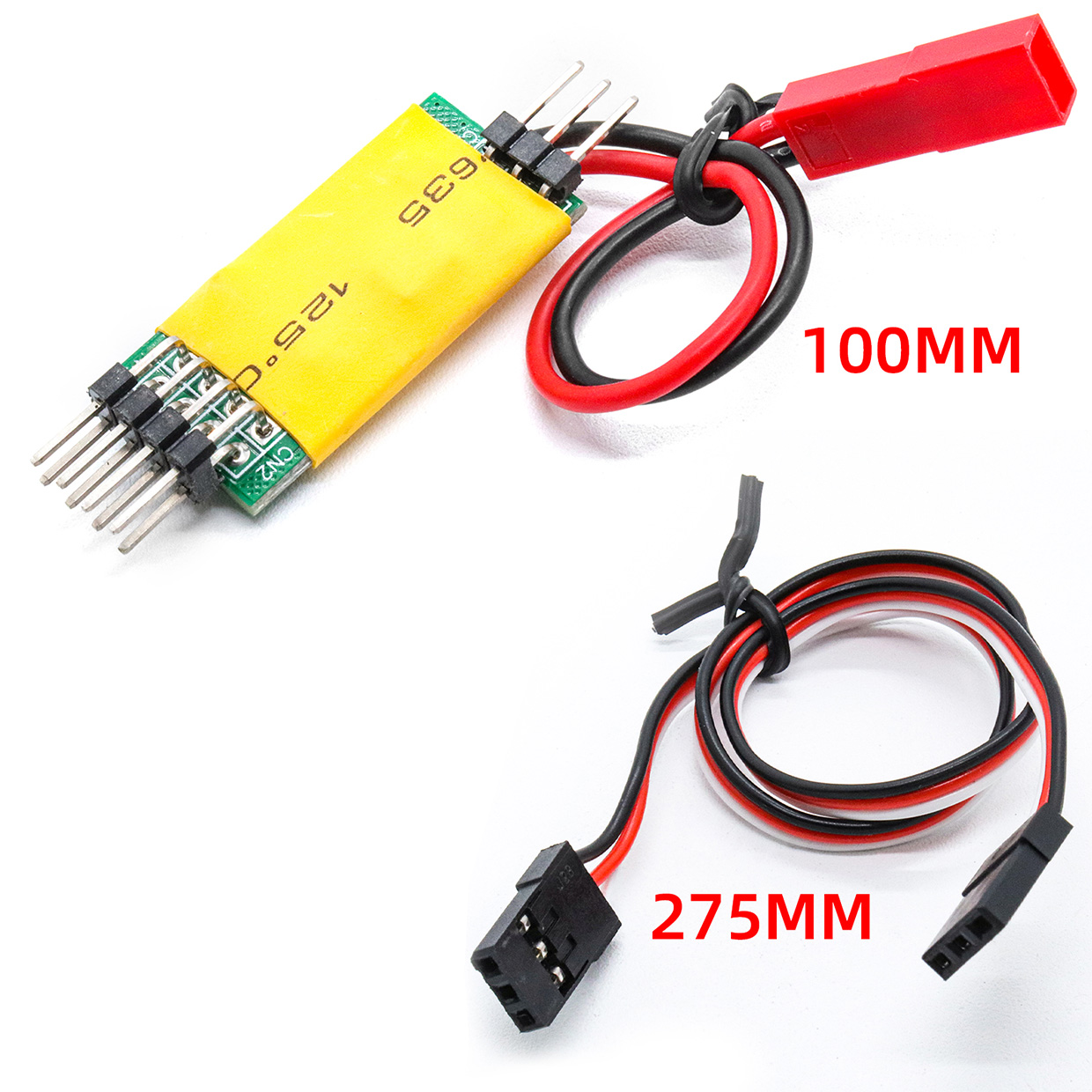

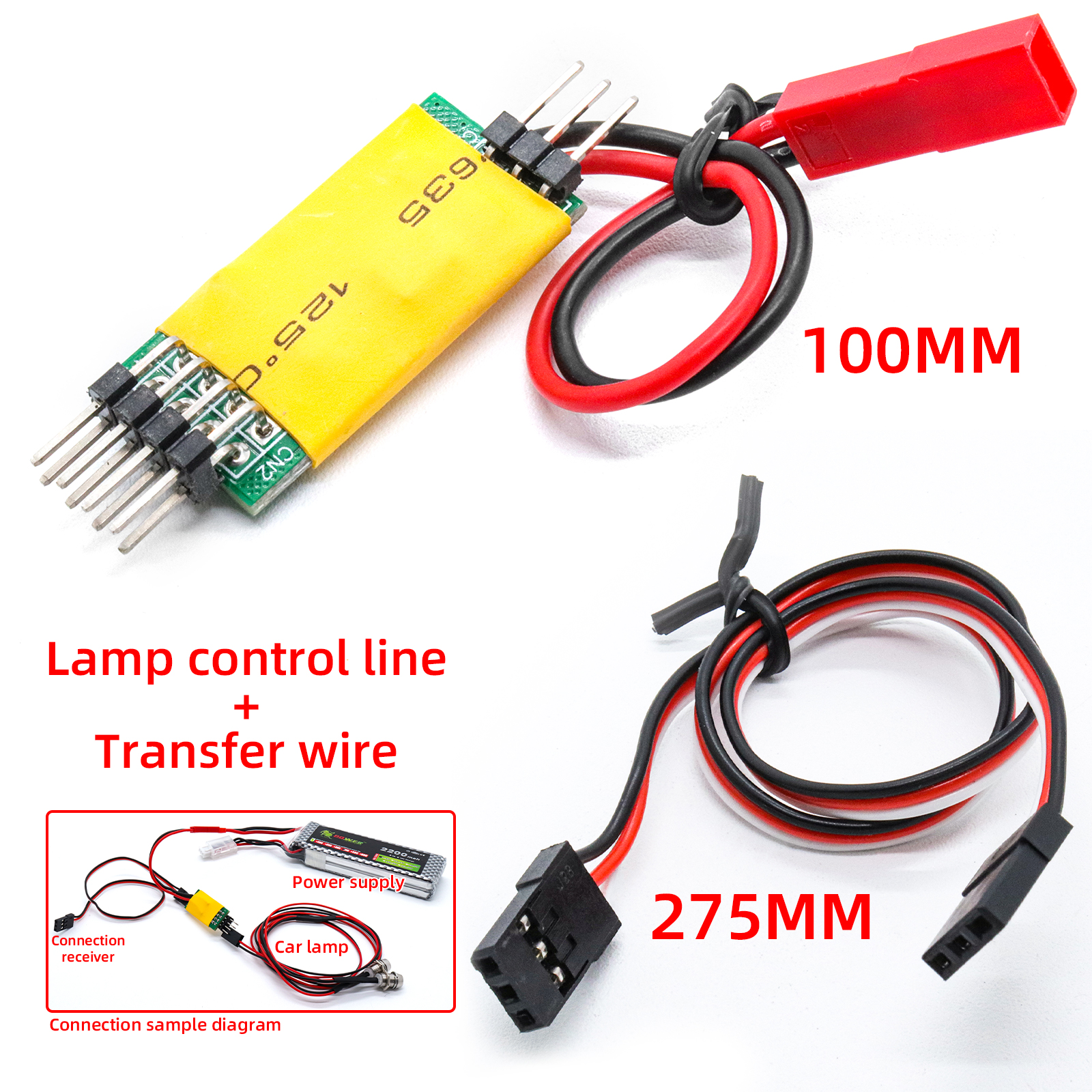

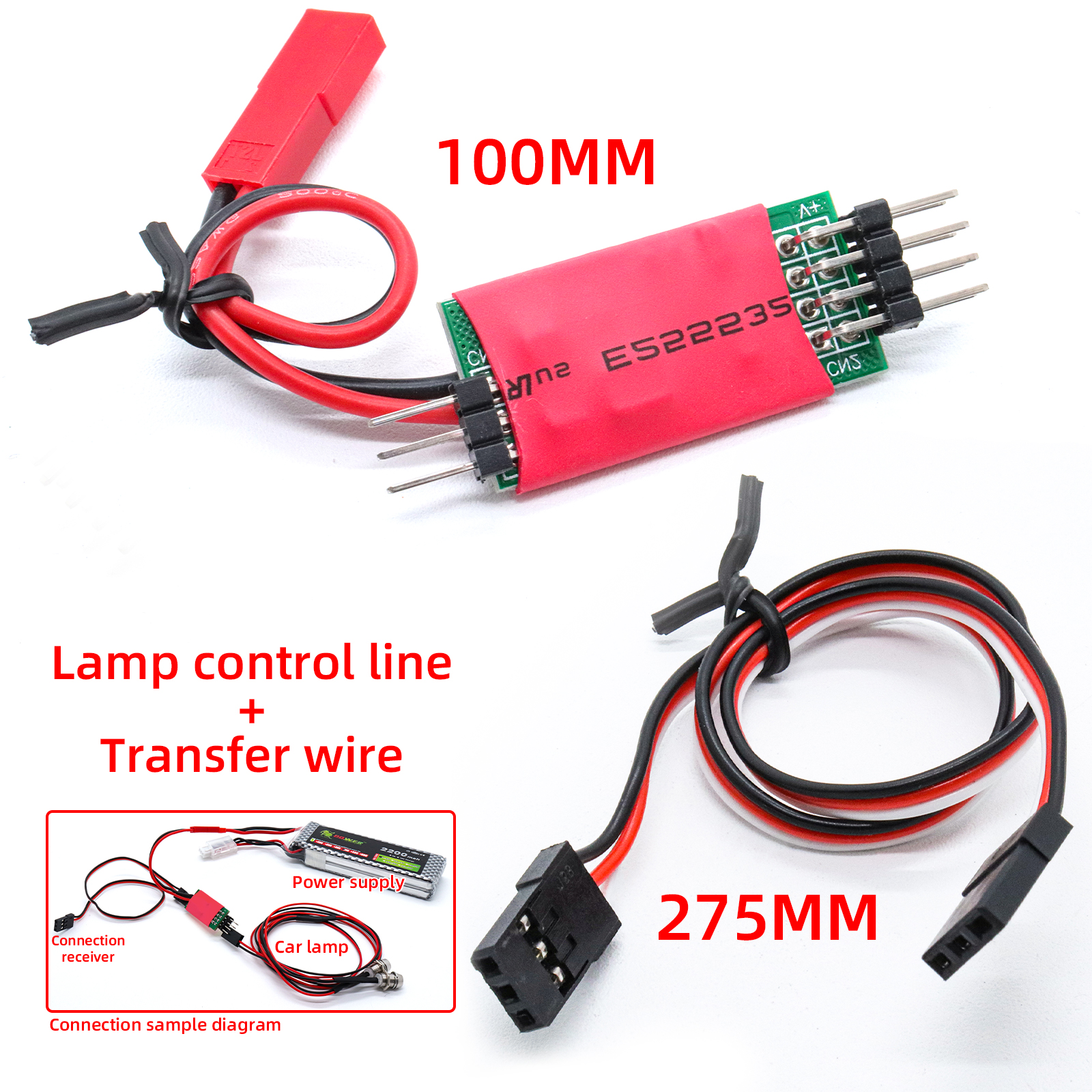

D lamp independent power supply switch type

Power supply mode: independent power supply: 5-12.4 V, maximum supply current 1A

Output supply lamp set: 4 sets of lamps 1234 1 and 2 are parallel relations 3 and 4 are parallel relations It can be understood that the output lamp group has four interfaces for two groups

Scene A: 1-2 is not bright when it is powered on, and 3-4 is not bright

Scene B: Click the remote control 1 & 2 on 3 & 4 off

Scene C, press the remote control again. 1-2 is not bright. 3-4 is bright

Scene D, press the remote control again 1-2 on 3-4 on

Scene E: Press the remote controls 1 & 2 and 3 & 4 again to enter the breathing flash state

In scene F, press the remote controllers 1-2 and 3-4 again to enter the flash state

Scene G: Click 1 & 2 and 3 & 4 again. Close and then press Enter Scene B to stay in turn

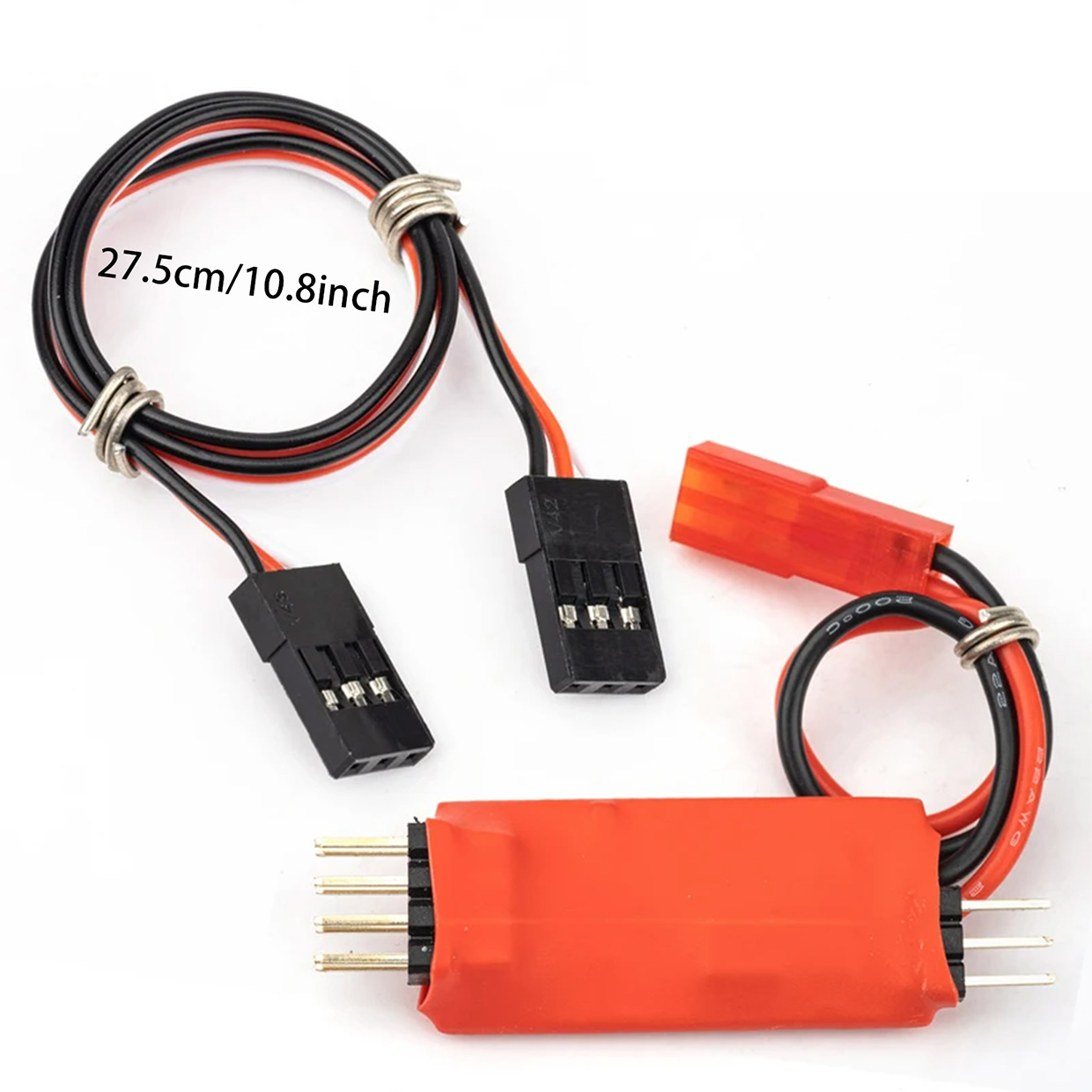

E lamp independent power supply switch type

Power supply mode: Independent power supply: 5-12.4 Maximum supply current 1A

Output supply lamp set: 4 sets of lamps 1234 1 and 2 are parallel relations 3 and 4 are parallel relations It can be understood

that the output lamp group has four interfaces for two groups

Scene A: 1-2 is not bright when it is powered on, and 3-4 is not bright

Scene B: Click the remote control 1 & 2 on 3 & 4 off

Scene C, press the remote control again. 1-2 is not bright. 3-4 is bright

Scene D, press the remote control again 1-2 on 3-4 on

Scene E: Click 1 & 2 and 3 & 4 again. Close and then press Enter Scene B to stay in turn
